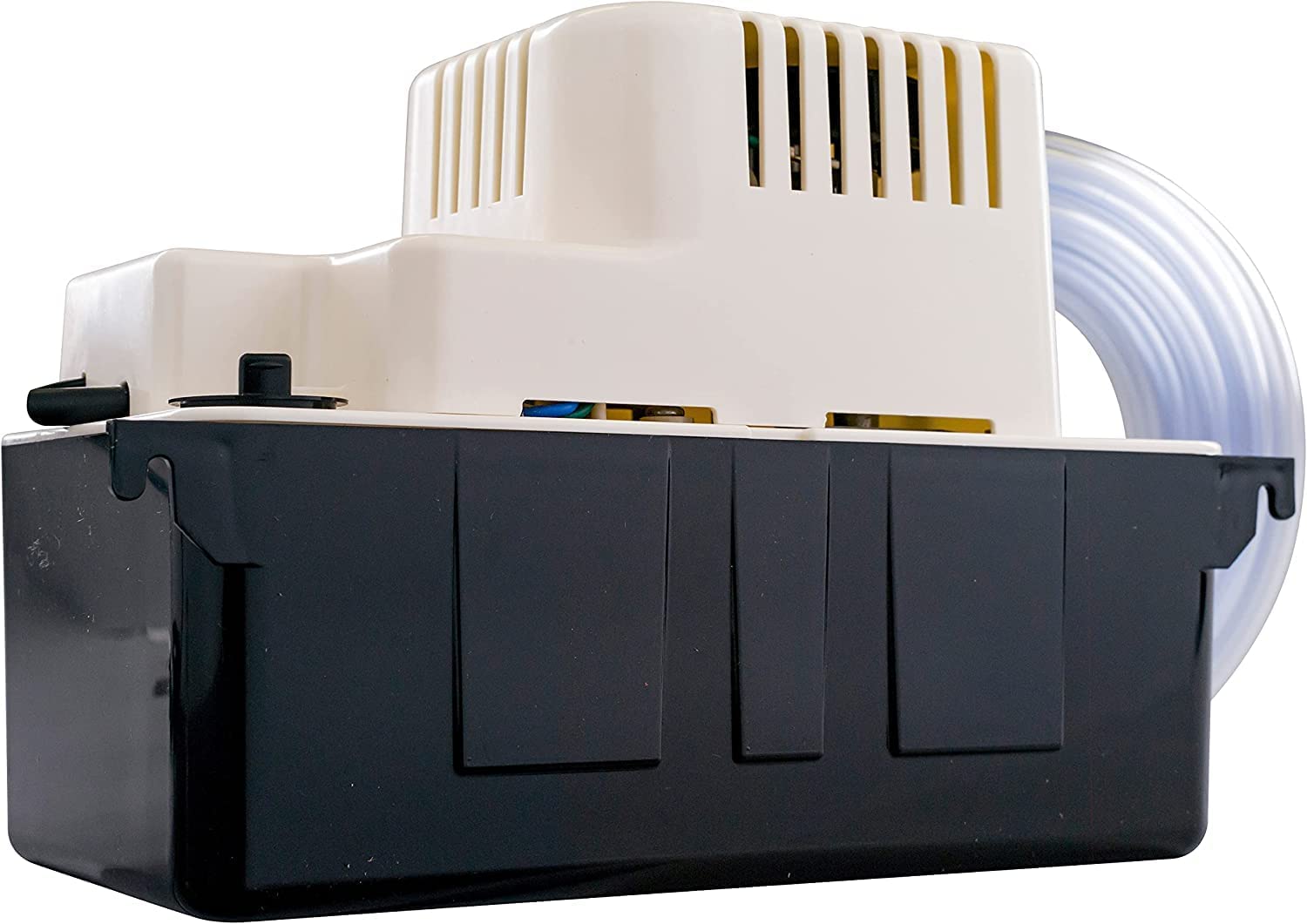

Little GiantVCMA-20ULST 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifers with Overflow Detection Switch and 20-Foot Tubing, White/Black, 554435
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5Thumbnail 6Thumbnail 7Thumbnail 8Thumbnail 9Thumbnail 10Thumbnail 11

Little GiantVCMA-20ULST 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifers with Overflow Detection Switch and 20-Foot Tubing, White/Black, 554435

4.6/5
Product ID: 22039904
Secure Transaction

Details

  • Brand
    Little Giant
  • Color
    Black/White
  • Material
    Acrylonitrile
  • Style
    115V with &
  • Product Dimensions
    11"L x 5"W x
  • Power Source
    Corded
1/30 HP Motor
💧80 GPH Flow Rate
🔒Safety Switch Included

Description

💧 Keep Your Space Dry, Effortlessly!

  • SAFETY FIRST - Equipped with a safety switch to prevent overflow.
  • VERSATILE USE - Ideal for boilers, air conditioners, and dehumidifiers.
  • COMPACT DESIGN - Vertical-type switch minimizes space usage.
  • HIGH EFFICIENCY - Pumps up to 80 gallons per hour at 1-foot head.
  • DURABLE CONSTRUCTION - Stainless steel motor shaft ensures longevity.

The Little Giant VCMA-20ULST is a powerful and compact automatic condensate removal pump designed to efficiently eliminate excess water from HVAC systems. With a robust 1/30 HP motor and a flow rate of 80 GPH, this pump is built for durability and safety, featuring a stainless steel motor shaft and a safety switch to prevent overflow. Perfect for both amateur and professional use, it includes 20 feet of vinyl tubing for easy installation.

Large manufacture image 1Large manufacture image 2Large manufacture image 3

Specifications

BrandLittle Giant
ColorBlack/White
MaterialAcrylonitrile Butadiene Styrene
Style115V with Safety Switch & Tubing
Product Dimensions11"L x 5"W x 7"H
Power SourceCorded Electric
Item Weight5.5 Pounds
Maximum Flow Rate1.33 Gallons Per Minute
Voltage115 Volts
Global Trade Identification Number00010121544352
ManufacturerFranklin Electric Co., Inc.
UPC010121544352
Specific Uses For ProductAmateur, Professional
Part Number554435
Item Weight5.5 pounds
Country of OriginChina
Item model number554435
Is Discontinued By ManufacturerNo
Size115 Volts
PatternPump
Wattage93 watts
Horsepower0.0333
Amperage Capacity2 Amps
Item Package Quantity1
Measurement SystemImperial
Special FeaturesMax 80 gph at 1' head, 70 at 5', and 48 at 10'
Included ComponentsProduct Only
Batteries Included?No
Batteries Required?No
Warranty Description1 year manufacturer

Have a Question? See What Others Asked

What is the difference between 230-volt and 115-volt?
Does this pump come with vinyl tubing?
Does this come with an overflow safety switch?
What is an overflow safety switch and how does it work?
The pump is louder than it should be. What can I do?

Reviews

4.6

All from verified purchases

S**E

Good pump

Just what we needed. Works great. Easy to install.

C**A

shipped quick, works very quickly. Highly suggested if you need a condensation pump

I recently installed a "plumbed-in" icemaker. This Icemaker requires a condensate pump to help remove the melted ice water. I selected a Little Giant pump--and it runs quickly (approx. 5 seconds--to lift all the water collected), makes very little noise and easily lifts the water to a utility sink drain (about 4ft). I am VERY impressed with the quality and the price was reasonable for the expected long life these units normally provide.If you are looking for a condensate pump--this is the best choice you can make. I highly recommend this pump. Small, works well--no maintenance ever needed. Plug it in and forget it.

J**E

Condensation pump

Direct replacement for originalWorking great

P**R

Good value!

Works well. Would buy again.

O**T

Pump For Furnace and AC

This pump arrangement offers a turnkey solution to a problem I have been avoiding for years. Overall, it is a well thought out system which allows for easy installation, and the pump operates quietly and efficiently. For those who are contemplating the addition of a condensate pump system, I can offer these observations; I was shocked at how much moisture a relatively new furnace puts out. From looking at the drip line, I thought for years it was only a cupful a day. I was wrong. When you combine the amount given off by the furnace with the huge quantity produced in hot weather with high humidity by the air conditioner, you have a big moisture issue which can lead to mold and mildew, as well as attract insects and tree roots.Features: This pump is a self contained system which is simple to mount and operate. The internal float allows for automatic operation, and there is also an additional overflow switch which can be hooked to an alarm for overflow conditions. The top half rests on the mounted reservoir without the need for screws or latches. To mount, you simply position the bottom reservoir and drill 2 holes. The box must be relatively level for good float operation.As far as dislikes, one minor complaint would be capacity; had I been more aware of the amount of water the furnace put off, I might have searched for something a little larger, but the nice thing is that the compact size makes for convenient mounting. My biggest complaint is the quality of the reservoir, which is made from a type of plastic that I feel may be a bit brittle for this application. The mounting ears seem like the weak point, as they are built in to the brown reservoir. All of this might be academic except for the fact that the unit will require cleaning from time to time. This means popping the top portion away from the bottom, and likely flexing those little mounting ears each time.Overall, this is a neat, self-contained system that solves a problem at low cost and effort.

G**M

If you’re on the fence, just do it!

I seriously almost paid an HVAC person a few hundred dollars. And this product save me so much money.Moved into a new house and after turning the furnace on, I could hear the super loud irritating sound from an entire floor above the furnace room. I assessed that it was the pump that was going out and I ordered this on Amazon, then crossed my fingers. After a quick YouTube of how to replace it. I honestly had this fixed in about 15 minutes and the old one removed/the new one installed.Pro:Super quietSo easy to installSeems to be the same quality as the one that was professionally installed beforeThe pump works much smoother than my previous oneI don’t see any drips and water retention seems to work wonderfullyCon:I think I wish it came with a couple zip ties to re-fasten the plug plug-in/water outlet pipe.I wish it came with another plug to cover the holes that are not used on the top just to keep more bugs and dust out of the pumpHonestly, a really great product for a great price! This thing saved me like $350 versus hiring an HVAC person to come swap it out…

A**N

How to hardwire/great product so far

So far so good, installed today. Just FYI, if you're installing yourself and you have to hardwire it, the BLUE wire is the common and the BROWN wire is the hot and then green/yellow for ground of course. This specific one has a plug, the directions don't show you how to hard wire it. I cut the plug off and wired it into the circuit. All works great!

B**T

Reliable brand

The 5 stars are for the 30+ yr. old Little Giant pump I just replaced. Never a problem until it started squeeling when running. It never got emptied or cleaned in all it's years. I will be very happy if this new Little Giant performs as well. It is plug & play if you have an outlet nearby.
